SBP Plus

NEW VENUS PLUS UPS

Complete power protection solutions to keep business systems running smoothly

The new Venus (SBP) Plus Series of uninterruptible power supply with Transformer-Based Filter (TBF™) offers high performance and comprehensive power protection. This advanced power protection solution offers battery backup plus the ability to regulate voltage fluctuations through an integrated Automatic Voltage Regulator.

WHAT'S NEW?

• Greater VA in a smaller footprint
• All outlets are UPS and power conditioned
• LCD displays remaining backup time left
• Automatic battery test

FEATURES

Electronic power conditioning (TBF™ Technology)
• Automatic Voltage Regulation
• “Smart Ground” technology – Controls ground noise to protect network systems and also eliminates ground loop current
• Automatic save and shutdown software for unattended computers
• Line interactive design
• Programmable battery test
• Fully microprocessor controlled
• USB port
• 50/60 Hz auto sensing
• Audible low‐battery indicator
• Cold start (DC power on)
• Two‐year equipment warranty

Specifications

MODEL

SBP450UPlus-T

SBP650UPlus-T

SBP800UPlus-T

SBP1000UPlus-T

SBP1500UPlus-T

Output Capacity VA / W

450 / 270

650 / 390

800 / 450

1000 / 600

1440 / 900

Output Voltage (On battery)

120V±10% 60 or 50 Hz ±0.5%

Transient let through voltage

<0.5V Common Mode (N-G) / <10V Normal Mode (L-N)   None of the competitors publish N-G let through voltage

Visual indicators

LCD display

Interface port

HID USB

Backup time – Half load (min)

13

8

10

11

9

Net weight (Lbs. /  Kg.)

9.1 / 4.15

10.35 / 4.69

11.20 / 5.08

19.22 / 8.72

21.78 / 9.88

Dimensions DxWxH  In (mm)

3.77 x 5.43 x 11.25 (96 x 138 x 286)

5.82 x 7 x 11.73 (148 x 178 x 298

Receptacles

6-NEMA 5-15R (battery & power conditioning)

8-NEMA 5-15R (battery & power conditioning)

Tel / Network protection

RJ11 / RJ45

Safety

cTUV-us

Communication software

Automatic save and shutdown for unattended PCs, reboot/shutdown scheduling, self test scheduling, power condition analysis

MORE IMAGES

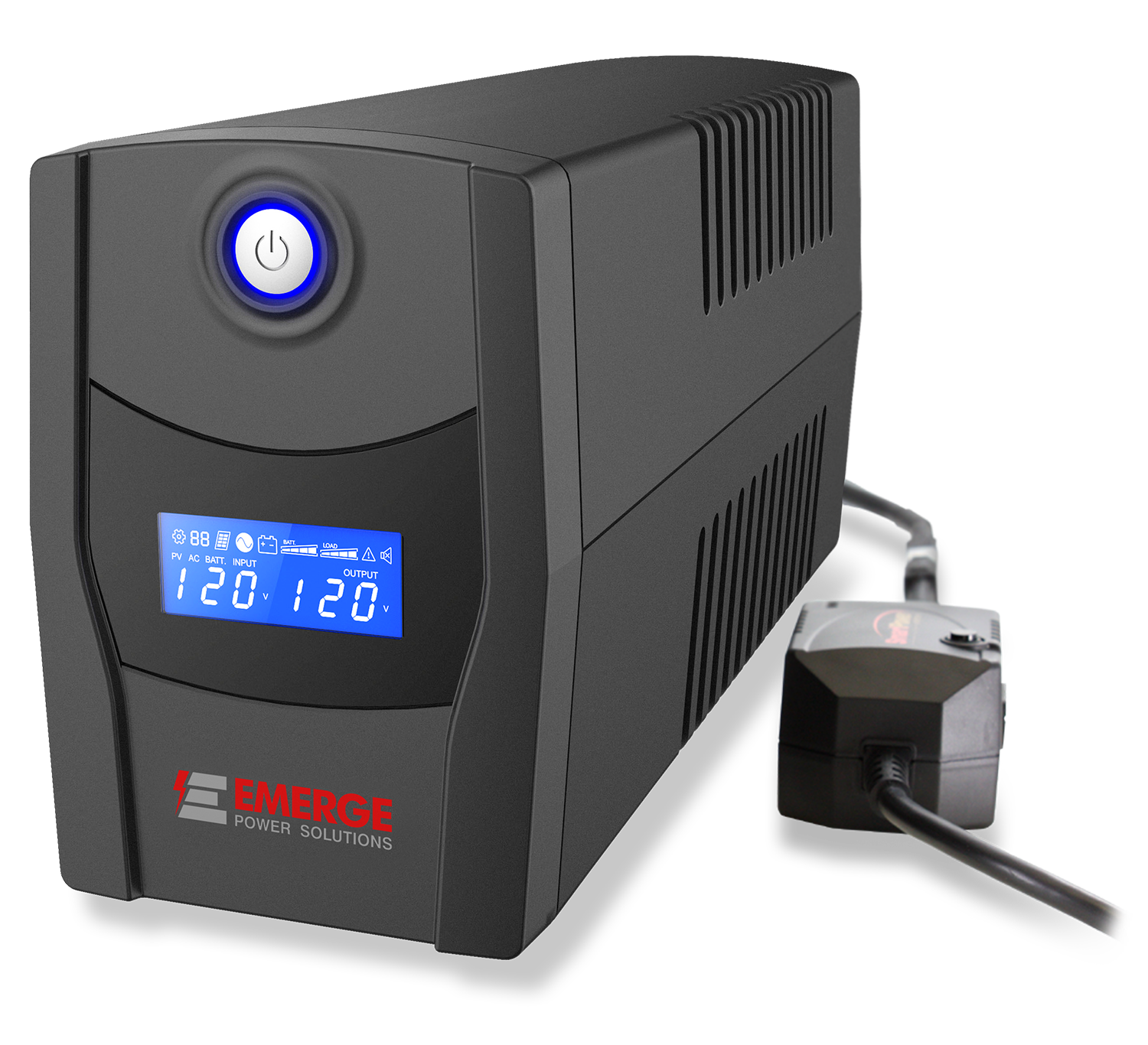

SBP UPS 450-800

SBP Plus 400-800VA- 120 with UTBF

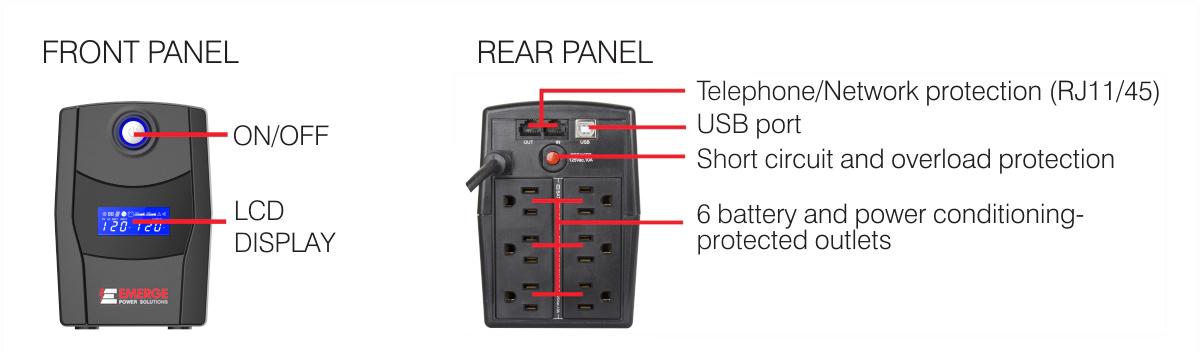

SBP UPS 450-800 – FRONT & REAR VIEW

SBP Plus 450-800VA-120 with UTBF front-rear

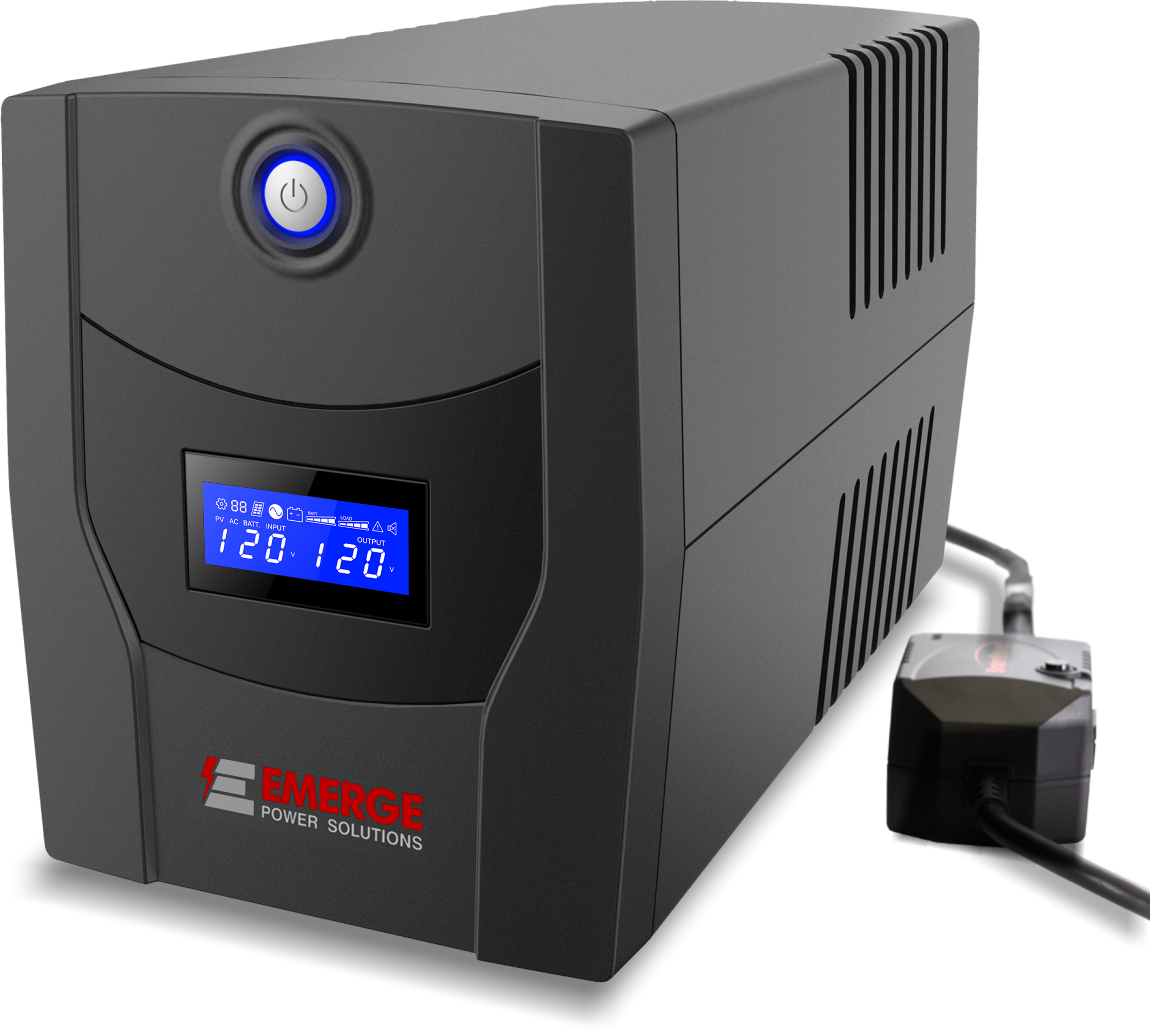

SBP UPS 1000-1500

SBP Plus ups - 1000-1500

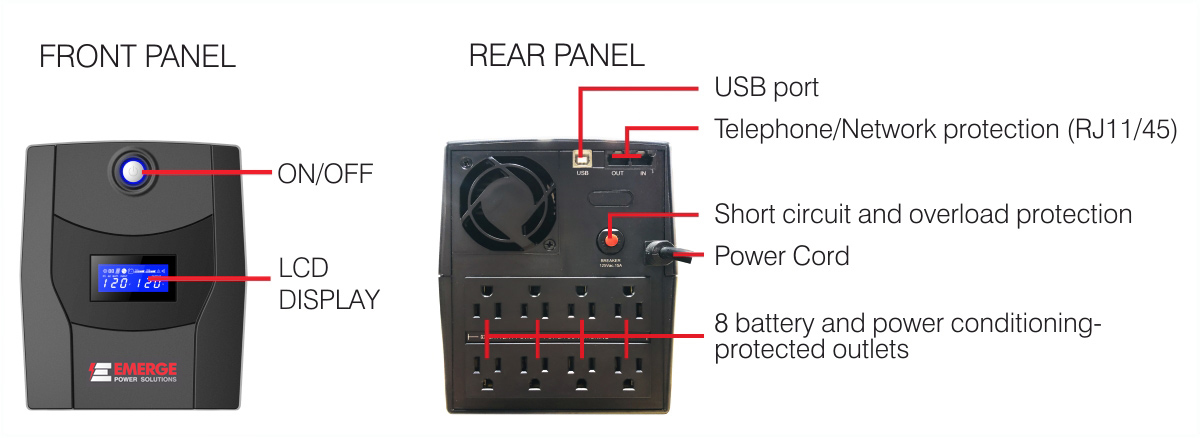

SBP UPS 1000-1500 – FRONT & REAR VIEW

SBP Plus 1000-1450VA - 120 with UTBF front-rear

DOWNLOAD DATASHEET

Software Included

Smart Power Master

CONNECTED EQUIPMENT PROTECTION POLICY

Connected Equipment Protection PolicyAt Emerge Power Solutions, we stand behind the quality and reliability of our power protection products. That is why we offer comprehensive $25,000 Connected Equipment Protection Policy. If the Emerge Power Solutions equipment fails and this failure allows a surge to pass through and damage the connected equipment, Emerge Power Solutions will pay for the repair or replacement of the connected equipment in accordance to our Connected Equipment Protection Policy. Click here for additional details on our Connected Equipment Protection Policy.

Troubleshooting

Runtime

The UPS does not perform expected run time

1) Possible cause: Batteries are not fully charged
1) Solution: Recharge the battery by leaving the UPS plugged in.

2) Possible Cause: Battery is slightly worn out
2) Solution: Contact technical support

Power

The UPS will not turn on

1) Possible cause: The on/off switch is designed to prevent damage by rapidly turning it off and on.
1) Solution: Turn the UPS off. Wait 10 seconds and then turn the UPS on.

2) Possible cause: The UPS is not connected to an AC outlet.
2) Solution: The unit must be connected to a 120VAC 50/60Hz outlet.

3) Possible cause: The battery is worn out
3) Solution: Contact technical support

4) Possible cause: Mechanical problem.
4) Solution: Contact technical support

Outlets

Outlets do not provide power to equipment

1) Possible cause: Circuit breaker is tripped due to overload turning it off and on.
1) Solution: Turn the UPS off and unplug at least one piece of connected equipment. Unplug the power cord of the UPS then press the circuit breaker button.

2) Possible cause: Batteries are discharged.
2) Solution: Allow the unit to recharge for at least 4 hours.

3) Possible cause: Unit has been damaged by a surge or spike.
3) Solution: Contact technical support.

4) Possible cause: Power cord is loose.
4) Solution: Reconnect the power cord.

Troubleshooting

Smart Power Master is inactive

1) Possible cause: The serial/USB cable is not connected.
1) Solution: Connect the serial/USB cable to the UPS unit and open serial port on the back of the computer. You must use the cable that came with the unit.

2) Possible cause: The unit is not providing battery power
2) Solution: Shutdown your computer and turn the UPS off. Wait 10 seconds and turn the UPS back on. this should reset the unit.

A UPS is programmed to test its circuit and battery(s). This function is performed when turning the UPS on, following an electrical outage and through periodic self-testing. Should it find a problematic condition the UPS will put out a series of beeps and tones alerting the user to the possible reasons below:

Battery mode: When a blackout occurs, the UPS will beep every 30 seconds
Low battery: When the battery is low it will beep every 2 seconds
Overload: When too many items are connected to the UPS, it will beep every 0.5 seconds. Disconnect items from the UPS until the beeping stops.
Fault: Continuous beeping means that the battery is dead or defective and needs to be replaced.

ALSO AVAILABLE

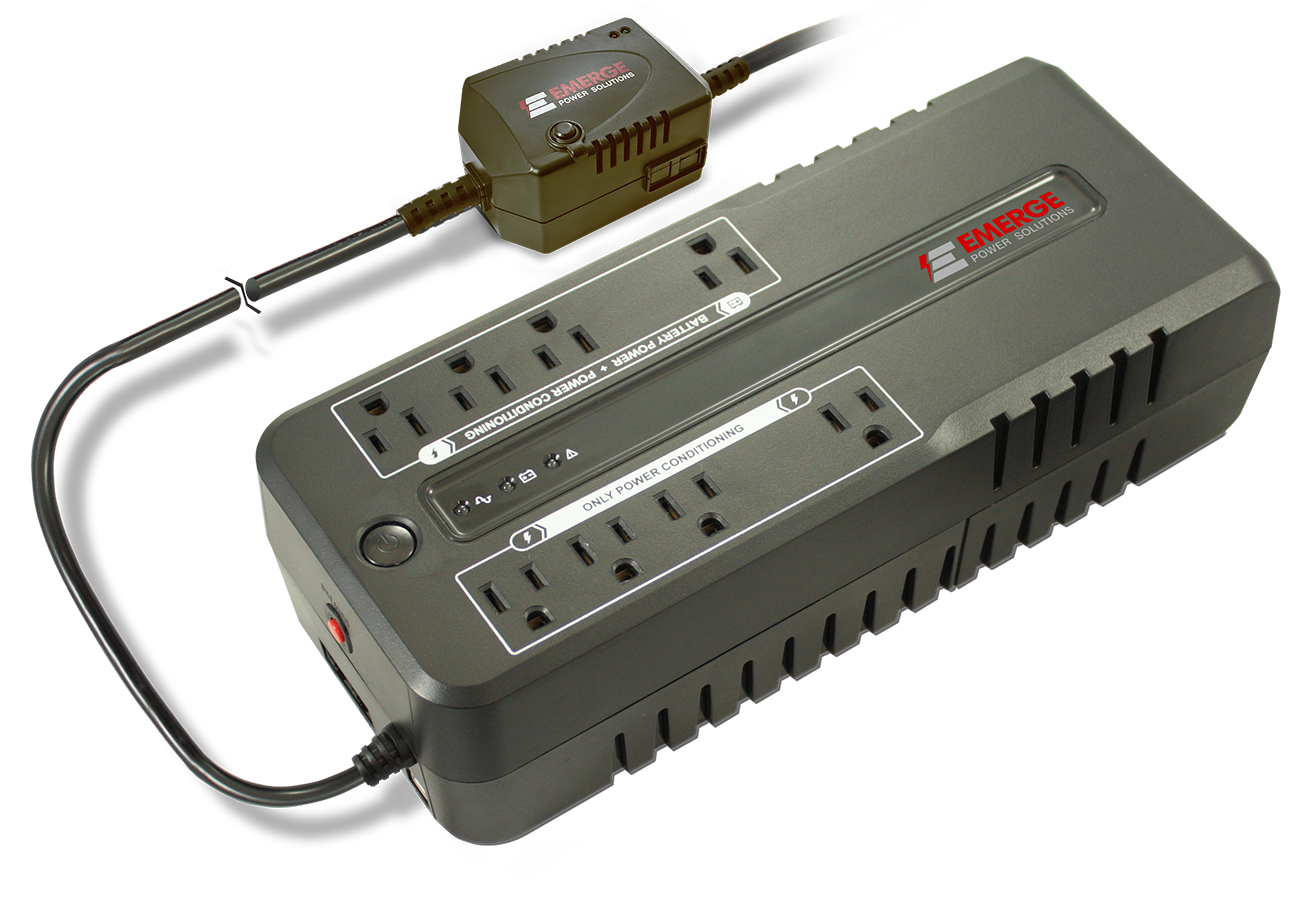

Office Plus UPS (Standby)
